Mondraker Raze 130mm travel do-it-all Trail Bike is MIND telemetry equipped

mondraker raze 130mm travel carbon mtb trail bike
Support us! Bikerumor may earn a small commission from affiliate links in this article. Learn More

Mondraker are asking you to raise your expectations of what a 130mm travel trail bike can manage with the release of the all-new Mondraker Raze. It rolls up with a trail-specific kinematic promising the pedaling efficiency of an XC bike combined with the downhill capabilities of an enduro bike; quiver killer territory. The bike combines a Stealth Air Full Carbon Frame with Mondraker’s own on-board MIND telemetry system in a bid to deliver the best possible ride feel, almost straight off the bat.

mondraker raze 130mm travel mtb side view
Mondraker’s ZERO Suspension Platform leaves heaps of room inside the front triangle for a full size water bottle and accessory mounting

Mondraker Raze

mondraker raze 150mm fork
What looks like a mini-fender forms part of the MIND telemetry system that gathers data on suspension behaviour as you ride

Mondraker say the new Raze takes the best of the F-Podium XC Bike, and the best of the Foxy Carbon Enduro Bike, combining them into a 130mm travel Trail Bike that will perform up and down. This 29er gets the sleek, drawn-out silhouette typical of a Mondraker with the long top tube translating to that generously large cockpit we’ve come to expect from the Spanish brand’s Forward Geometry design philosophy.

mondraker raze 130mm travel carbon rocker
The Monobloc rocker is a one-piece carbon fibre design; the lower link is optimised for increased stiffness as compared to the lower link on previous iterations of the ZERO Suspension Platform

The 130mm rear end is paired with a 150mm travel fork, with all models benefiting from Mondraker’s proprietary integrated telemetry system; MIND. This is a very attractive feature of Mondraker bikes, tech they developed over three years of testing with their World Cup Downhill riders. What was once an expensive and complex piece of technology, both to fit and understand, is now a seamlessly integrated device designed to be understandable by all riders, not just those with a degree in engineering.

mondraker raze mind telemetry suspension technology sensors
The bike benefits from Mondraker’s Hidden Housing Guide cable routing, with the rear brake hose, dropper post and gear cables fed through the headset for a neat aesthetic that maximizes the clean-cut lines of the frame; this means no adjustable head tube cups, however.

Sensors on the fork and rocker of the Zero Suspension linkage gather data on travel usage 100 times per second; they do this by measuring the magnetic field from magnets on the left fork leg and swingarm main pivot, respectively.

mondraker raze 130mm travel trail bike carbon 29er
All models of the Raze have a shock with a light compression tune and ultralight rebound tune, with 0.6 volume spacers pre-installed

Unlike the 2022 Mondraker Foxy Carbon, geometry is fixed. Available in sizes S-XL, reach figures extend from 455mm to 515mm within that range, with each frame size sporting 435mm chainstays. A 150mm travel fork gives the Raze a 65.5° head tube angle paired with a 76.5° seat tube angle, with the bottom bracket sitting 30mm below the dropouts at a height of 343mm.

mondraker raze mtb
All models come with a dropper seat post; S: 125mm, M: 150mm, L/XL: 175mm
mondraker raze geometry chart
2022 Mondraker Raze Geometry Chart for Sizes S-XL
mondraker raze fidlock pocket water bottle mount
Credit: Pete Drew

The downtube of the Raze features a Fidlock pocket. The image on the top left shows how the frame is shipped with a plate for mounting a regular water bottle. The plate can however be switched out for a Fidlock mounting plate; the downtube recess simply allows the mount to sit flush with the frame so that a Fidlock water bottle can sit lower on the frame, leaving more clearance for larger bottles. Mondraker will be selling branded Fidlock water bottles with the mounting plate.

mondraker raze chainstays

The Raze frame is built around a boost rear end, protected at the downtube and chainstays with custom frame protectors, also designed to minimize noise.

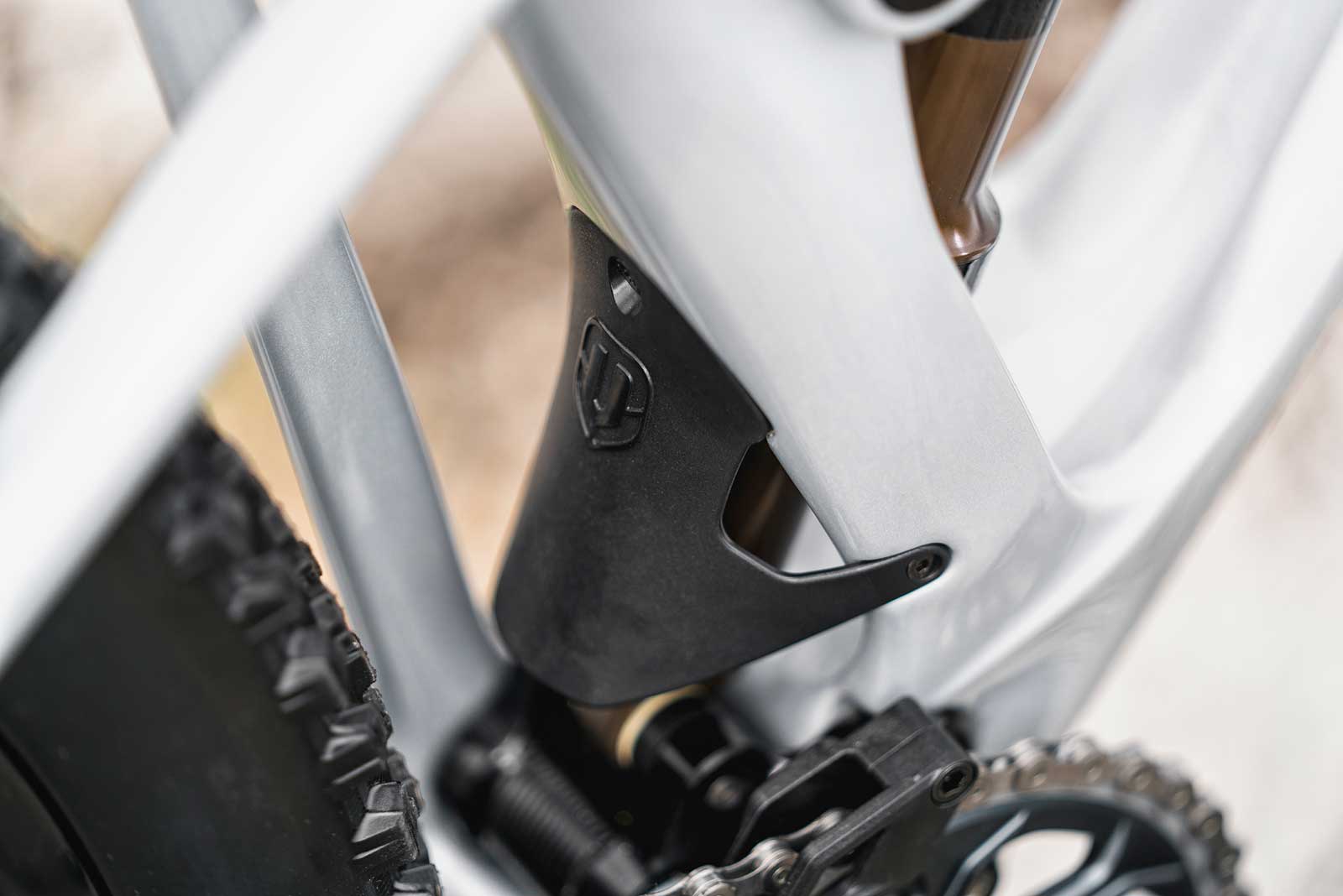

mondraker raze shock mud guard
Additional protection is bolted onto the rear of the seat tube to protect the shock from trail debris

Pricing & Availability

Initially, Mondraker are offering the Raze in three full carbon models only; the Raze RR SL, RR, and R. All seem to be appropriately spec’d for reasonably aggressive trail riding with 4-piston brakes , 60 TPI EXO Casing Maxxis rear tires, dropper seat posts and chain guides.

mondraker raze r black
The Mondraker Raze R model weighs a claimed 13.2 kg in size medium

At the cheaper end of the spectrum (not exactly “budget”), the Raze R retails at £5,499. For that money you get a FOX 36 Float EVOL Performance fork with GRIP damper and a FLOAT DPS LV EVOL Performance shock delivering 150mm and 130mm of suspension travel, respectively. It rolls on a DT SWISS XM1700 SPLINE alloy wheelset with DT 350 hubset. Other highlights include SRAM G2 brakes and SRAM GX Eagle derailleur shifting through the 10-52T cassette.

mondraker raze rr
The Mondraker Raze RR model weighs a claimed 12.5 kg in size medium

Next up is the £6,799 Mondraker Raze RR, upgraded with the GRIP2 damper of the Factory level FOX 36, and the DPS Factory shock. Other highlights include the SRAM G2 RS brakes, SRAM X1 carbon crankset and XO1 Eagle derailleur.

The Mondraker Raze RR SL models weighs a claimed 12.2 kg in size medium

Topping the range is the Raze RR SL, priced at £9,299. This one also gets the FOX 36 Factory fork with GRIP2 damper, though the FIT4 is shown above. The shock is the DPS Factory Kashima model with 3-position compression lever and rebound adjustment. The main upgrades include the DT SWISS XCM1200 Carbon SPLINE wheelset with DT 240 hubset, SRAM G2 RSC brakes, SRAM XO1 Carbon Crankset, and AXS Eagle electronic shift drivetrain, as well as the AXS Reverb dropper seat post.
