2021 YT Capra is a Carbon MX 170mm enduro bike (there’s a new 29er too)

2021 yt capra mx core4 blue
Support us! Bikerumor may earn a small commission from affiliate links in this article. Learn More

Today sees YT Industries launch not one but two new enduro mountain bikes. The 2021 YT Capra, now the MK3, has arrived in two configurations; a 29er and a mixed-wheel size MX edition. The former is said to be the fastest enduro bike YT have ever made. Gone is the 27.5″ option, replaced by the YT Capra MX which gets its very own carbon frame and suspension kinematic, distinct from that of the 29er.

yt capra mx launch edition limited to 100 bikesThe launch edition with its distressed pink colorway, top-end spec and decals reminiscent of Return of The Goat II, is limited to just 100 bikes. Here’s everything you need to know.

2021 YT Capra 29er

YT Capra Core 3 lava red action shot

YT Industries have updated their long-standing long-travel enduro bike, the Capra. Now in its third iteration, the Carbon Capra gets an entirely new frameset with a more aggressive downhill-focused, but still adjustable, set of geometry figures. In fact, there’s not much about the Capra that hasn’t changed this year; let’s dive in with a top-level facts first.

  • Frame Material: Ultra Modulus Carbon Fibre
  • Fork Travel: 170mm
  • Rear Wheel Travel: 165mm
  • Sizing: S-XXL
  • Pricing: Starting from $4,499 USD
2021 YT Capra Core 3 29er
The 2021 YT Capra 29 Core 3 model in a small frame size (no bottle, no pedals) weighs a claimed 15kg

The die hard YT fans can relax; it still looks like a Capra. The new frame is composed of a high modulus carbon fibre lay up, utilizing lighter and more expensive fibres than we’ve seen on previous models. As a result, frame weight is reduced. Perhaps more importantly, the weight distribution has altered. Note the increased girth of the downtube and chainstays relative to the top tube and seat stays; the bulk of the weight now sits lower.

2021 yt capra 29er linkage layout
A look at the non-drive side reveals an asymmetric front triangle braced from the seat tube to the downtube

MK3 Geometry

Low and behold, the 2021 Capra is lower, longer and slacker than the MK2 that came before it. Picking out the Large frame as an example, reach has increased by 7mm to a very healthy 467mm while the BB drops to 349mm in its lowest configuration.

yt capra core 3 build yellow
The entry-level YT Capra Core 3 is available in Lava Red and Deep Yellow colorways

As before, the chainstay length does change in accordance with frame size. Like a growing number of mountain bike mfgs, YT recognize the merits of proportional length chainstays, but freely admit it is not cost effective to take this approach for all five frame sizes. As such, the S, M and L frames get a 438mm stays while this increases to 443mm for the XL and XXL sizes.

2021 yt carbon capra geometry adjustable flip chip rear shock mount core 3 lava red model

As alluded to earlier, geometry of the 2021 YT Capra is adjustable through the flipping of a flip-chip located at the rear shock mount. Featuring a more aggressive geometry than the MK2 frame, the new Capra sports a head angle of 64.5° and a (3°!) steeper effective seat tube angle of 77.9°. The geo adjust is subtle; switching the orientation of the flip-chip, and thus the position at which the rear shock mount sits, slackens the HA and SA to 64.2° and 77.6°, respectively. These changes are as a result of the BB dropping by 5mm.

2021 yt Capra geometry

With the addition of a Small frame for 2021, more riders than ever have the opportunity to appreciate the advantages of YT’s take on a long-travel 29er enduro bike.

Suspension Kinematic

The 2021 YT Capra actually has slightly less rear wheel travel than its predecessor at 165mm. How that travel is delivered has changed quite considerably, however. With a little encouragement, YT agreed to share with us detail of the suspension kinematic of the new Capra, information they have been hesitant to release in the past.

2021 yt capra 29er levergae ration curve graph comparison with MK2 frame

While the two frames share an almost identical rear axle path, the leverage curve of the 2021 Capra sees reduced end stroke progression as compared to the 2020 model. In line with this change, YT say they have also improved the pedaling kinematics with changes to both the anti-squat and anti-rise characteristics of the frame.

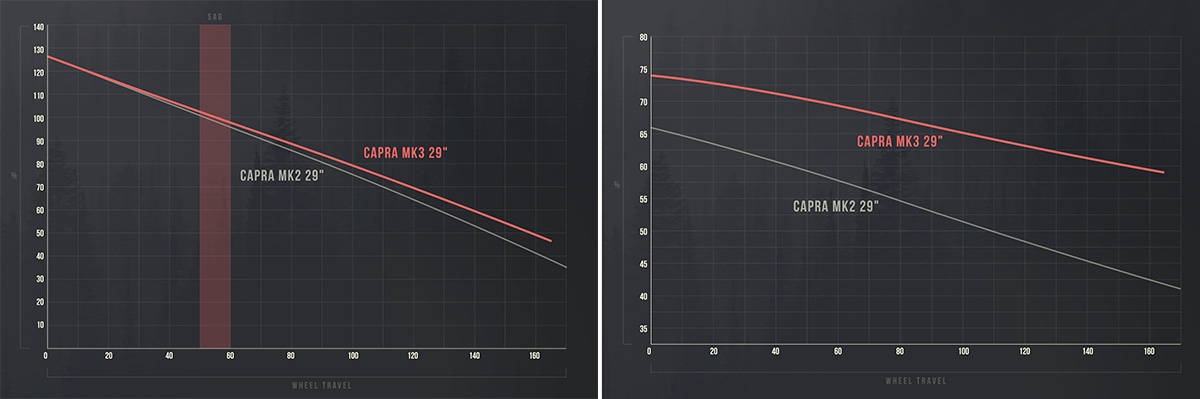

2021 yt capra antirise antisquat
Suspension kinematic comparison graphs of the 2021 Capra versus the MK2 29er; anti-squat (left) and anti-rise (right)

While the 29er and MX versions are both able to accommodate a coil shock, YT say the leverage curve of the MX frame is better suited to the linear spring.

2021 YT Capra MX

2021 yt capra mx core4 blue
The 2021 YT Capra MX runs 170mm of rear wheel travel to match the 170mm fork up front (Core4 model in NoxBlue shown)

Though the YT Capra started out its life on the trails as a 27.5″ bike, the industry and the demands of its customers have moved onto bigger (and better?) things. The 27.5″ drops out of the line-up for 2021, replaced by a sweet-looking MX version, or mullet… call it what you want.

YT CAPRA MX CHAINSTAY
On all models, internal cable routing is guided throughout; all frame sizes have space for a water bottle in the front triangle

The Capra MX runs an entirely different frameset to the 29er. It’s not just the geometry that’s different; the carbon fibre layup is deferentially tailored to its more downhill-oriented intentions. As such, its a bit weightier with the Core 3 model in size small weighing a claimed 15.3kg.

2021 yt capra mx leverage ratio versus 2020 27.5"

The Capra MX has a higher start and end leverage ratio to the 2020 27.5″ bike it replaces. Of more significant note here is the fact that the MX version sees significantly increased end stroke progression over the new 29er, making it a more favorable candidate for the linear spring of a coil shock.

YT capra mx flip chip

As you might imagine, the Capra MX is a bit slacker than its 29″ counterpart with a head angle of 64.3°. That drops to 64° when you change the orientation of the flip-chip. It also concomitantly drops the BB height by 5mm to 346mm and slacken the effective seat angle to a still very healthy 77.5°.

yt capra mx geometry mulletThe Launch Edition

return of the goat 2 launch edition yt capra 2021 mx mullet mtb
A still from Return of the Goat II featuring the 2021 YT Capra Launch Edition

The Launch Edition of the 2021 YT Capra is available in the MX configuration only. Thus is the top-of-the-range model with a parts list pushing the retail price up to $7,999 USD. YT are only releasing 100 models of the Launch Edition, so you’ll have to move fast to get your hands on one.

yt capra mx launch edition limited to 100 bikes

So, what’s on it? That cash gets you a RockShox ZEB Ultimate fork a Cane Creel DB Kitsuma Coil Shock with a Vault Progressive spring and the Cane Creek eeWing crankset.

2021 yt capra launch rotgII model
The MX and 29er versions of the 2021 YT Capra feature boost rear end spacing (12mm x 148mm)

Other standout parts include the Crankbrothers Synthesis Carbon wheelset with differential front and rear wheel tunes, SRAM Code RSC brakes with 200mm rotors, SRAM XO1 Eagle 12 speed drivetrain and a Renthal finishing kit.

yt capra mx launch edition renthal finishing kit cane creek eewing crankset

The small (but important) details

2021 yt capra core 3 headtube
The 2021 Capra gets a redesigned headtube similar to what we see on the short travel Izzo, said to be stiffer

From fully guided internal cable routing, to space for a water bottle inside the front triangle on every frame size, it seems no detail has been overlooked on the redesigned Capra. New for 2021 is an additional pair of bosses on the underside of the top tube for accessory mounting. The new Capra also runs a SRAM Universal Derailleur Hanger for simplicity.

2021 YT CAPRA ACCESSORY MOUNTS

The driveside chain and seat stays get protection from chain slap to keep the bike quiet and protect the paintwork. The downtube also gets some protection. All frames get the same ZS44 ZS56 headset and press fit bottom brackets.

Pricing & Availability

The 2021 YT Capra is available in three models, one of which is the limited edition launch bike, pricing and specs for which you’ll find above.

2021 yt capra 29 core deep yellow

The entry-level Capra is the Core 3 model. Both the 29er and MX versions are priced at $4,499 USD. That money gets you a FOX Float Performance Elite 38 fork, Float X Performance Elite shock, Crankbrothers Synthesis Alloy wheels, SRAM Code R Brakes, GX Eagle 12 speed drivetrain and E13 cockpit.

2021 yt capra 29 core4 black magic
The 2021 YT Capra 29 Core 4 model in a small frame with no bottle or pedals weighs claimed 14.9kg

The Core 4 gets a FOX Factory level for and rear shock, Crankbrothers Synthesis Alloy wheelset with upgraded Industry Nine 1/1 hubset, SRAM Code RSC brakes, XO1 Eagle 12 speed drivetrain and Renthal cockpit. This one, in 29 and MX, will set you back $5,999 USD.

2021 yt capra core 4

YT have introduced a new way to pre-order bikes as part of the 2021 Capra launch. Customers who wish to pre-order a bike with an availability lead time longer than 8 weeks will be asked to pay a 10% fully-refundable deposit to reserve their bike, with the balance being charged four weeks before the bike ships.

That deposit ensures a place in line and orders can be cancelled at any time with a full refund. YT expect to start shipping the first Capra bike in late 2021 with production volumes ramping up significantly in early 2022. Customers will be able to see their projected shipment date when placing their order.

YT-Industries.com
