Pioneer will have the first aftermarket power meter for the new Shimano R9100 crankset. It’s coming in November in dual leg or single sided options, offered both as the complete package with new cranks or as the aftermarket add-on kit. Pricing is $1,499 for the complete crankset with dual power, or $629 for just the left arm with a sensor preinstalled. The add-on kits are $999 and $499.

Perhaps more impressive than the speed with which they’ve prepped the unit for Shimano’s latest is the number of new options for other cranks…

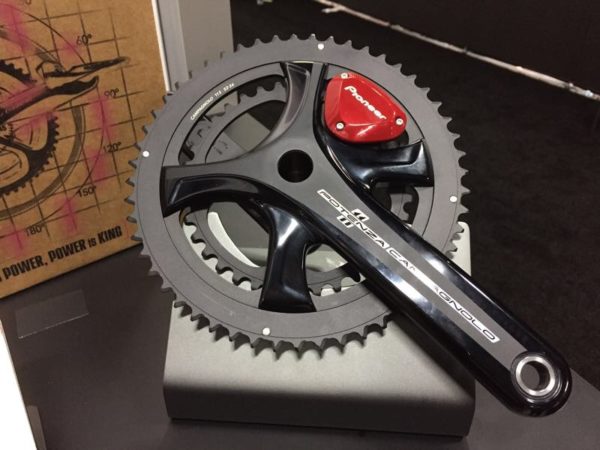

Pioneer power is now available on Campagnolo Potenza as single or dual leg, sold as an add-on kit to start.

They’ve also added options for FSA SL-K carbon and Cannondale SiSL2 and Si alloy cranks. The challenge with putting it on carbon cranks is that they “bend” differently than alloy ones, which means the deflection can’t easily be measured in the same spots. They say the FSA cranks are closest to alloy because they bend in the same general area, letting Pioneer capture force direction and normal power readings in both ANT+ and their higher resolution “Pioneer Mode.”

All three are sold as a single leg (left side) add-on kit for your existing cranks for $499, same as the others, which includes installation and all parts except the crankset. The dual sided Campy option is $999.

They’re also breaking into mountain bikes with single leg options for XT M8000 and XTR M9020 (Trail version only, the Race cranks don’t have a wide enough Q-factor to guarantee frame clearance).

Firmly in the development stage is an expanded sensor collection that gives them more things to measure. A tota of 28 sensors in five locations on the bike provide three new metrics, including include head stability, weight distribution and ankle/shoe angle.

The seatpost and stem use bonded-on strain gauges, installed by Pioneer using a similar kit system as the cranks. The others use gyros and accelerometers. These are here to show they’re serious about the cycling business and get feedback to see if and how the industry wants this info. It’s part of a three year development plan, so you won’t be able to buy it anytime soon, but could be very useful to bike fitters and teams. Overlay the ankle angle with power data and uou could determine if you’re losing watts by keeping your feet too flat, or change the saddle or handle bar position to better balance your position. The data points are certainly interesting.

PowerIsKing.com

16 comments

  1. Allan on

    Wait a minute. I thought the new DA crank want going to make it to the masses until about spring of next year?! Also why would you buy an aftermarket product for something that hasn’t been released yet, and will have the same power meter option once it is released?

    It will be interesting to see what the OEM power meter crankset will cost.

    Reply
    • myke2241 on

      Pioneer boost high definition data and are different in that regard. Is also a aftermarket option. So there are many reasons to buy this.

      Reply
    • Mike B. on

      From what I’ve heard and read, Shimano is already in production of mechanical 9100 and delivering to OEMs; FC-9170 and the rest of Di2 isn’t expected until Q2 or Q3.

      Reply
    • CyclistA on

      I’ve had one on order for almost 2 months. It’s showing a ship date of Oct 2 for shifters and cranks. Derailleurs and brakes are the beginning of next week.

      Reply
    • ABZ on

      The standard 9100 crank will be shipping very soon. But the crank with Shimano’s power meter won’t be shipping until the spring like you said. If you want power on the new 9100 now, it seems like adding the Pioneer to it is the only option for the next 6 months. I’ve heard the Shimano power meter system will cost considerably more than $1500.

      Reply
  2. boom on

    Had a teammate buy a Pioneer crank and he’s had loads more problems than my Stages. Unfortunately I think they still have issues to work out. Until then, hopefully the Shimano one works as well as an SRM without the massive price?

    Reply
  3. Brian on

    Will these work for my once a week I might ride through a puddle bike? Or how about my there are no gravel roads around me and since the name touring bike is passé gravel bike?
    I used to just ride but now I have to make sure the new technology will work on all my bike

    Reply
    • TheDesertIsSharpAndPointy on

      I had no idea that my gravel bike was the same as my touring bike. I mean, the frame construction, geometry, wheel and tire selection, brake choice, components selection, gearing, and just about every other discernible thing is different between the two of them. But what do I know! Brian on the internet say’s its the same thing!

      Reply
