Patent Patrol: Shimano electronic suspension control automatically adjusts stroke

2022 fox 34 fork updated stiffer arch more headtube clearance
4 Comments
Support us! Bikerumor may earn a small commission from affiliate links in this article. Learn More

Today’s Patent Patrol once again takes a close look at a Shimano invention. Shimano files more patents than perhaps any other company in the cycling industry. This time, they have filed a patent regarding an electronic suspension control that, according to patent language, will “improve the usability of the human-powered vehicle.”

While Shimano damns with faint praise here, this is actually pretty cool. The patent outlines a system that can electronically adjust your suspension’s stroke length, and its sag, based on data the system records. That means your fork stroke and sag can change to accommodate climbing, then automatically adjust again for the descent.

The patent illustrations show the device being applied to an e-bike. It appears too that the suspension control outlined in the patent is intended for e-bike use. There is, however, nothing to indicate the system couldn’t work on other types of bikes that feature suspension.

What does the electronic suspension control do?

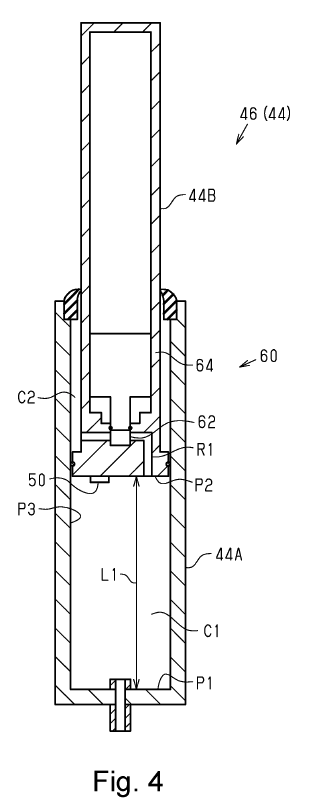

Electronic Suspension Control, FIG 4
FIG.4 outlines a two-chamber damping system with an electronically-controlled valve in between to control the flow of fluid between the two chambers. This adjusts stroke and sag.

Simply stated, the electronic suspension control automatically adjusts your suspension to provide the best possible stroke and sag settings at all times. We’ve seen automatic suspension devices in the market already. Fox Live Valve uses sensors to automatically adjust your suspension settings to respond to terrain. Shimano’s suspension control system is quite a bit different, though.

Shimano’s system appears to comprise of two distinct functions. First, the control senses relative position information (i.e. what your fork’s doing right now). That means the sensor knows when your suspension is inactive and the hydraulic chambers are essentially in equilibrium.

Second, the electronic suspension control gathers data about how the suspension has moved after it has been activated. The rider will likely have to do this manually by compressing the fork.

Electronic flowchart
This flowchart shows the general function of the electronic ‘brain’ of the system.

The computer then stores that information. According to the patent, that information takes the form of, “table data indicating a corresponding relationship of the predetermined relative position information and the predetermined relative movable amount.” So the computer references an existing table of information to find the optimal settings based on the suspension movement.

In other words, your computer knows how much your suspension moved. And it knows how much your suspension is able to move overall. That helps the electronic suspension control determine the optimal settings for future movements.

Once that data gets established, your suspension will automatically get set for the riding condition. The sag and stroke may change, for example, to optimize for climbing. Then, when the system senses the climb is over, or a descent has begun, your suspension will adjust accordingly.

Nuts and bolts

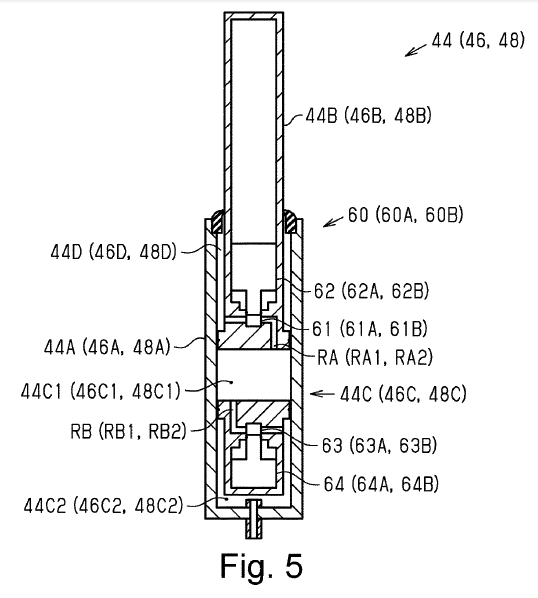

Shimano Electronic Suspension Control, FIG 5
FIG.5 shows a rear suspension system with three air chambers. Two valves control the flow of air from one chamber to the other, thereby adjusting the shock’s stroke.

The electronic suspension control features a computer, of course. Since this appears to be a device designed for e-bikes, it’s likely that the control might integrate with an existing head unit that controls the e-bike itself. But that’s not outlined in the patent specifically. So it’s possible this is an independent computer too. That would make sense for use on “analog” bikes.

There’s also a detector, which is used to detect the relative position of your suspension. Inside the suspension itself, the electronic suspension control includes a valve that opens and closes to control the flow of hydraulic fluid between chambers in your suspension. This is the physical device that will either allow the suspension to move or to restrict its movement.

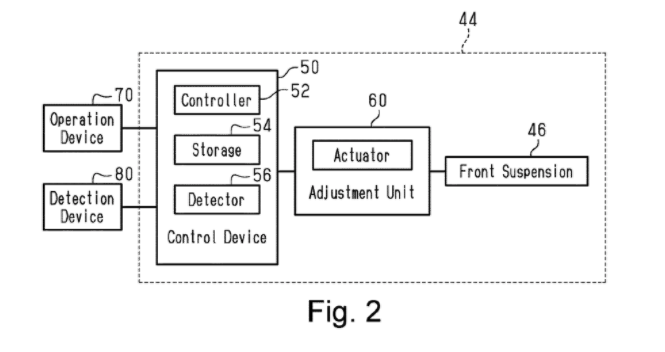

Electronic schematic
FIG.2 shows another electronic schematic. This appears to outline some of the data that the computer system records in order to make adjustments to the suspension (left column).

That means the system could automatically lock out your suspension when you don’t need it, and activate it when you do. It also means the fork’s stroke can shorten or lengthen depending on the situation at hand.

As the patent states, “the electronic controller is configured to control the valve in accordance with the relative position information.” So the electronic suspension controller essentially learns from the relative position information sent from the sensor that tracks your suspension’s movements.

This describes the function on the damper side. Shimano has also filed a patent to accommodate the electronic suspension control system on the air side.

The air side

The air side works in a similar fashion. A control device activates a valve to allow the transfer of air from one chamber to another. That’s how the stroke length gets changed.

There are three air chambers in this configuration, with two separate valves. It’s not entirely clear what that small third chamber is for (labeled 44c2 in FIG.5), but it could be a bottom-out chamber. That would provide some movement should the system be essentially ‘locked out’ while the system encounters an impact.

The sensors in the electronic suspension control system simply determine whether you’re riding uphill, downhill, or on a flat section of trail. It then references its data tables to change your suspension sag and stroke based on those conditions.

How is the electronic suspension control different from Live Valve?

Fox’s Live Valve system senses when your suspension encounters an obstacle. Then, within 3 milliseconds, it automatically opens the valve to allow the suspension to move. It’s lightning-fast. That means your suspension can firm up when you’re not encountering obstacles, then instantly become supple when you need it.

Shimano’s electronic suspension control appears to do an analysis of suspension movement before you even start riding. The computer knows when your suspension is not moving. Then, once the suspension moves, the system collects data about how, specifically, the suspension moved. From there, the electronic suspension control can make adjustments accordingly.

Unlike the Fox system, the Shimano electronic suspension control isn’t about lightning-fast reactions to impacts. Instead, it’s all about changing your actual suspension tune to accommodate the climbing position and the descending position. It changes the actual stroke length and sag of your suspension, whereas the Fox system does not change its stroke length or sag; it simply reacts to impacts in real time.

Is it cool?

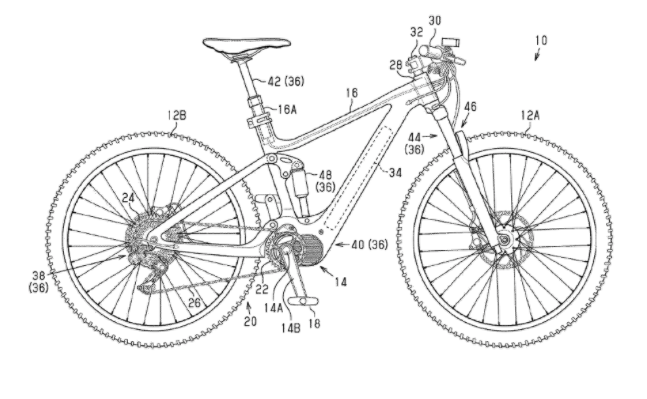

Bike suspension outline
This image outlines the suspension system’s routing and components. It’s not exactly easy to decipher, but shows the general location of key components.

Yes, definitely! XC riders can probably spot why already. Imagine you’ve got a long climb ahead of you. Being able to reduce the stroke of your fork gets you in a better position to tackle that climb and reduces suspension movement. Then, when you need more travel, the electronic suspension control automatically makes those adjustments so you can take advantage of your suspension’s travel on the descents.

The question is whether we’ll ever actually see it on bikes, and on what bikes it makes most sense. It doesn’t appear to be coincidence that the patent shows an e-bike illustration. This system would certainly make sense on such bikes that are often exceptionally heavy and sometimes difficult to control as a result of that weight bearing on suspension systems. And extra torque from pedal-assist systems have an outsized effect on suspension in the best conditions.

Time will tell. But e-bikes and XC bikes seem like the most obvious audiences here. That is, of course, if the system can actuate quickly enough for racers to find it advantageous.

Patent research assistance provided by Wheelbased.com. Check them out for deeper dives on some of these patents and more.
