PAUL Component Engineering builds a shorter 35mm Boxcar stem

17 Comments
Support us! Bikerumor may earn a small commission from affiliate links in this article. Learn More

Ask and you shall receive, right? That’s exactly what happened with the latest stem from PAUL Component Engineering – as long as you were asking for a 35mm stem. That’s 35mm in length, not clamp diameter in case you’re wondering.

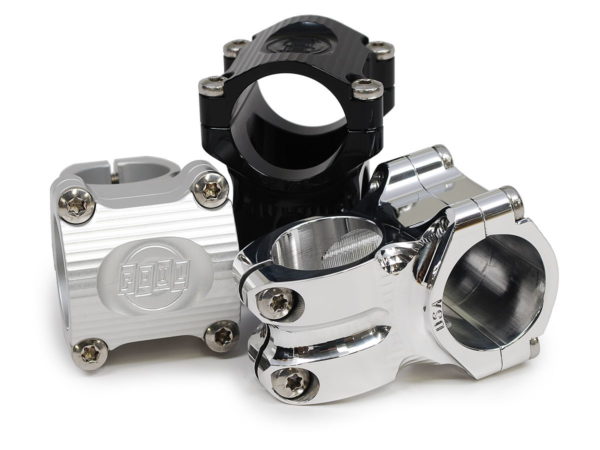

PAUL Component Engineering builds a shorter 35mm Boxcar stem

Fans of the PAUL aesthetic and legendary made-in-the-USA quality now have a shorter option when it comes to their Boxcar stem. Developed after repeated requests from mountain bikers for a shorter version of their popular stem, the 35mm option is precision machined from 2024 aluminum and clamps onto the bars with stainless T25 Torx bolts.
PAUL Component Engineering builds a shorter 35mm Boxcar stem PAUL Component Engineering builds a shorter 35mm Boxcar stem PAUL Component Engineering builds a shorter 35mm Boxcar stem

Available in the usual black, high polished, and raw silver, the Boxcar is now available in 0° rise stems in 35, 50, 70, and 90mm lengths. It’s also available in +/-15° in 70 and 90mm lengths. The 35mm stem has a claimed weight of 118g, and sells for $123 in black or silver, and $135 for the high polished. Available now.

Technical Information

  • Weight: 35 mm +/- 0: 118 g
  • Material: American 2024 Aluminum
  • Finish: Anodized or Polished
  • Anodized Color: Black or Silver
  • Bar Clamp Diameter: 31.8 mm
  • Lengths:35 mm
  • Stem Angle (deg): +/- 0
  • S.H.I.S. Stem Clamp Diameter: 28.6 mm
  • Stack Height: 36 mm
  • Torque Settings: Steerer Tube: 5nm  Faceplate: 4nm

paulcomp.com

Subscribe
Notify of
guest

This site uses Akismet to reduce spam. Learn how your comment data is processed.

17 Comments
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
California Travis
California Travis
6 years ago

We don’t offer this stem in RAW, that is actually Silver anodized. Cheers!

bretton
bretton
6 years ago

Beautiful! Any chance for a super-limited run of blue? Purple?

Joe
Joe
6 years ago
Reply to  bretton

PURPLE PLEASE!!!!

erik
erik
6 years ago
Reply to  Joe

yes to purple! I have to give up my purple 50 to go 35…

Douglas McSaladbath
Douglas McSaladbath
6 years ago

Can you do a one that is the color of craft mac-n-cheese.

Dad Jokes
Dad Jokes
6 years ago

I don’t know, that could make it feel a little noodley

JtotheF
JtotheF
6 years ago

Out of curiosity, what is the benefit of running Torx vs Allen head for the bar and steerer clamps?

JBikes
JBikes
6 years ago
Reply to  Zach Overholt

I like Torx heads as, imo, they are stronger. However, I am unsure how they encourage torque wrench use anymore more than Allen head tools (I know…I shooting the messenger…).

Crash Bandicoot
Crash Bandicoot
6 years ago
Reply to  Zach Overholt

Not a fan of Torx but T-25 is a much better option than T-27 which is so close to t-25 that its very easy to use the wrong tool on the bolt head and end up stripping it. Agreed on the torque wrench thing don’t see how the two are really correlated.

Will Ansley
6 years ago

Can we get a 35mm clamp plz.

Dr Sweets
Dr Sweets
6 years ago

Ditto^^^

satisFACTORYrider
satisFACTORYrider
6 years ago

deity cavity stem has been around and renthal makes 33 & 31mm options

Steve H
Steve H
6 years ago

They are nowhere near as good looking though.

Seraph
Seraph
6 years ago
Reply to  Steve H

Gonna have to disagree with you there. The Deity is a lot better looking than the Paul.

Crash Bandicoot
Crash Bandicoot
6 years ago

This is gorgeous! I’d buy in a 120mm right now if they’d make it in that size
